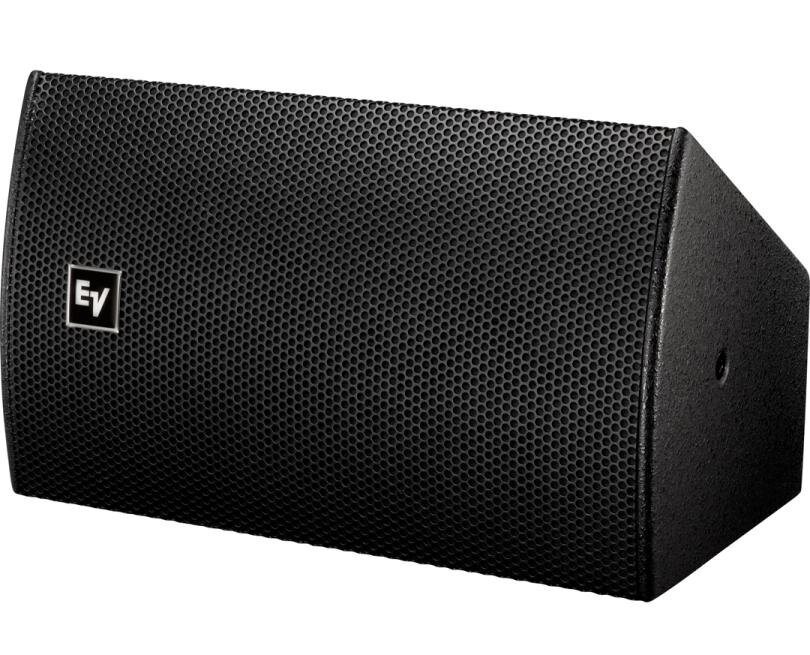

Electro-Voice EVU-1082/95-BLK

Single 8", dvojpásmová sústava, čierna, robí sa aj v bielej farbe

Dostupnosť: Na otázku
Doručíme dňa:

EVU séria prináša do rodiny EV-Innovation ultrakompaktný design a ponúka možnosti použitia ako delay, prizvučenie pod divadelným balkónom, na prednú hranu javiska a mnohé ďaľšie.

EVU séria disponuje otočným výškovým zvukovodom s rovnomerným pokrytím a umožňuje tak montovať sústavy zvisle aj vodorovne. Sústavy sú dodávané s montážnym držiakom na stenu. Pre všetky sústavy série EVU sa doporučuje použiť 90Hz filter 4.rádu.

EVU Series – Ultra Compact Speakers

Typ	Výkon	Popis
EVU-1062/95-BLK	160W	Single 6.5" Two-Way Black
EVU-1062/95-WHT	160W	Single 6.5" Two-Way White
EVU-2062/95-BLK	300W	Dual 6.5" Two-Way Black
EVU-2062/95-WHT	300W	Dual 6.5" Two-Way White
EVU-1082/95-BLK	175W	Single 8" Two-Way Black
EVU-1082/95-WHT	175W	Single 8" Two-Way White
EVU-2082/95-BLK	350W	Dual 8" Two-Way Black
EVU-2082/95-WHT	350W	Dual 8" Two-Way White

Axial Sensitivity (SPL, 1 W @ 1 m)	95 dB
Color	Black or white
Finish	Textured paint
Nominal Impedance	8 Ω
Waveguide	6 in. x 6 in., rotatable
Frequency Response (-3 dB)	110 - 16000 Hz Half Space
Frequency Response (-10 dB)	65 - 20000 Hz Half Space
Recommended High-Pass Frequency	90 Hz
Max. SPL/1m (calc)	Continuous: 117, Peak: 123 dB
Coverage (Nominal -6 dB) H	90 °
Coverage (Nominal -6 dB) V	50 °
System Power Handling (Continuous/Program/Peak)	175//700 Watts EIA RS-426A (eight hours)
LF Transducer	One 8-inch (203 mm) ICT-8-8 woofer
HF Transducer	One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver
Minimum Impedance	6 Ω
Connector Type	4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire)
Enclosure Material	9-ply hardwood plywood
Grill	18-gauge steel with cloth behind
Suspension	(6) M8 threaded points
Height	247 mm (9.72")
Width	409 mm (16.1")
Depth	237 mm (9.33")
Weight Net	7.4 kg (16.31 lbs)
Shipping Weight	10.3 kg (22.71 lbs)
