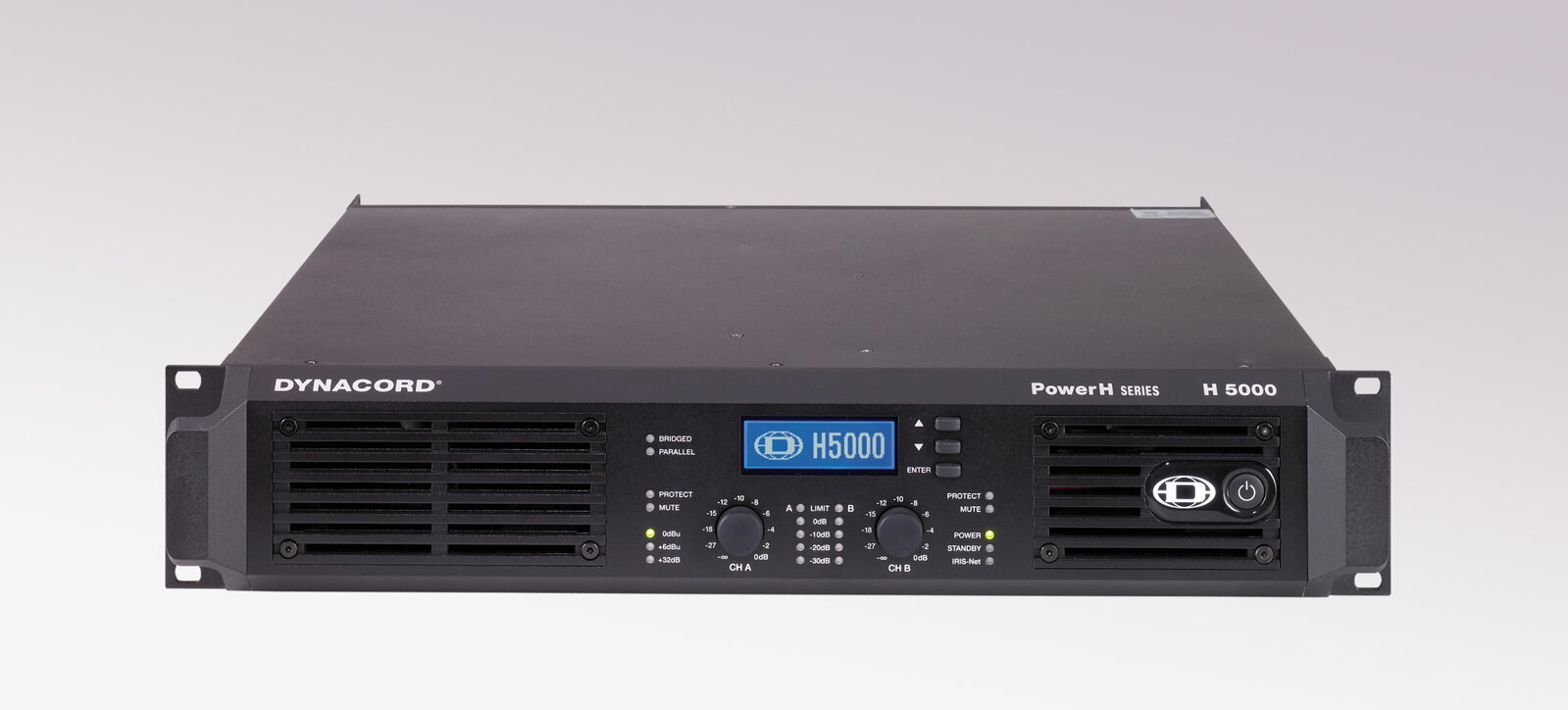

Dynacord PowerH - Datasheet

Load Impedance : 2Ω, 4Ω, 8Ω

Maximum Midband, Output Power, 1 kHz, THD=1%: 2 O - 1900 W, 4 O - 1450 W, 8 O - 850 W

Rated Output Power, 20 Hz ... 20 kHz, THD <0.1% : 4 O - 1200 W, 8 O - 600 W

Max. Single Channel, Output Power, Dynamic-Headroom, IHF-A : 2 O - 2050 W, 4 O - 1700 W, 8 O - 940 W

Max. Single Channel, Output Power, Continuous, 1kHz : 2 O - 1950 W, 4 O - 1600 W, 8 O - 900W

Maximum Bridged, Output Power, 1 kHz, THD=1% : 4 O - 3800 W, 8 O - 2900 W

Maximum RMS, Voltage Swing, 1 kHz, THD=1% : 95 V

Power Bandwidth, THD=1%, ref. 1kHz, half power @ 4O:  10 Hz ... 50 kHz

Voltage Gain, ref. 1 kHz : 39 dB / 33 dB / 32 dB (switchable)

Input Sensitivity, at rated output power @ 8O, 1 kHz : 0 dBu / 6 dBu / 7 dBu (switchable)

THD at rated output power, MBW=80kHz, 1 kHz : < 0.05 %

IMD-SMPTE, 60 Hz, 7 kHz : < 0.05 %

DIM 30, 3.15 kHz, 15 kHz :  < 0.02 %

Max. Input Level : +22 dBu (9,75 Vrms)

Crosstalk, ref. 1 kHz at rated output power : < -80 dB

Frequency Response, ref. 1 kHz : < 10 Hz ... 30 kHz (± 1dB)

Input Inpedance, active balanced : 20 kO

Damping Factor ,1kHz : > 400

Slew Rate : 30 V/µs

Signal to Noise Ratio Amplifier, A-weighted, 32 dB constant gain : 109 dB

Output Noise , A-weighted : < -70 dBu

Output Stage Topology : Class-H Grounded Bridge

Power Requirements : 100 V - 240 V, 50 Hz - 60 Hz; 100 V, 50 Hz - 60 Hz

Power Consumption, at 1/8 maximum output power @ 4 O : 1000 W

Protections

Audio limiters, High temperature, DC, HF, Short Circuit, Back-EMF, Peak current limiters, Inrush current limiters,Turn-on delay, Mains Circuit Breaker Protection, Mains Overvoltage Protection

Cooling

Front-to-Rear, 5-stage-fans

Ambient Temperature Limits : +5°C ... +40°C (40°F ... 105°F)

Safety Class : I

Rozmery (WxHxD), mm : 483 x 88.1 x 498

Váha : 14.2 kg

Možnosť dodať modul diaľkového ovládania RCM-28.
